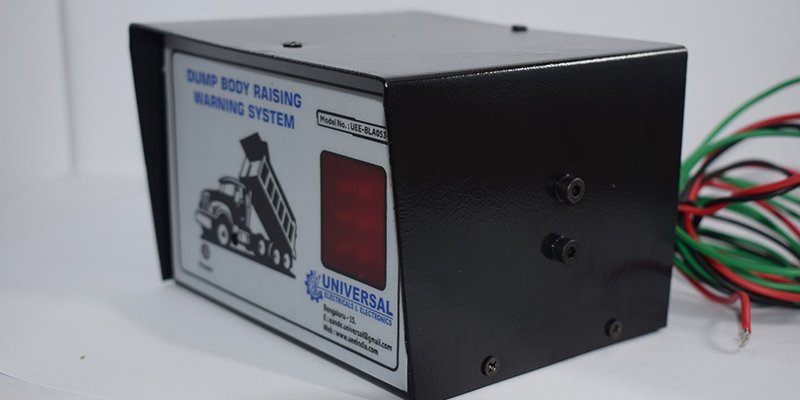

Dump Body Raised Position Indicator & with Warning

This system is designed to monitor the position of the dump body on Dumpers/Tipper Trucks and ensure safe operation by preventing vehicle movement while the dump body is not fully lowered. It enhances operational safety and prevents potential mechanical damage or accidents during transport.

Functional Description:

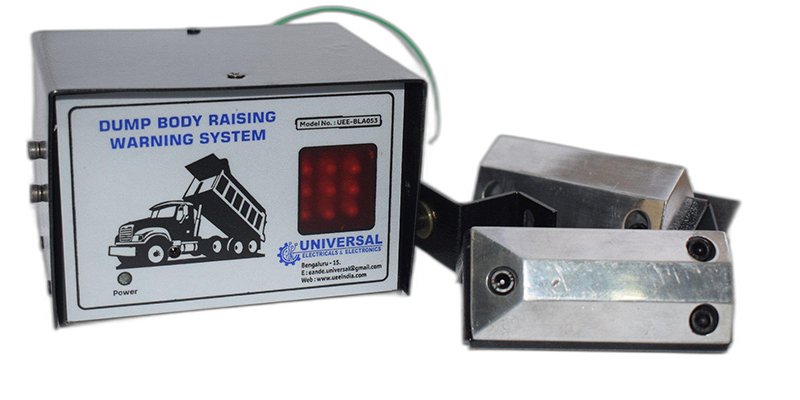

The system comprises a dump body position sensing unit, an interlock mechanism, and audible/visual alert indicators integrated with the vehicle’s transmission control system.

Key Features:

1. Position Sensing:

• The system continuously monitors the dump body position using a reliable sensor (e.g., proximity, limit, or angle sensor).
• It detects whether the dump body is completely lowered (in transport position) or raised.

2. Warning Indications:

• An audible alarm (buzzer) and/or visual indicator (warning lamp on the dashboard) are activated when the dump body is not in the fully lowered position.
• These alerts remain active until the dump body returns to its fully retracted transport mode.

3. System Integration:

• The system interfaces with the vehicle’s electrical and control circuits without affecting normal operations.
• It is designed for easy installation on both new and existing dumpers/tippers.

4. Safety and Reliability:

• Prevents accidental driving with an elevated dump body, thereby avoiding overhead collision, body damage, or rollover incidents.
• Complies with industry safety standards for dump truck operations.

Applicability:

• Suitable for all Dumpers and Tipper Trucks used in mining, construction, and material handling operations.
